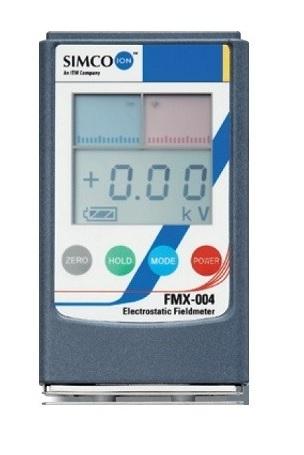

Handheld Electrostatic Fieldmeter, FMX-004

Simco-ION's FMX-004 Fieldmeter is a compact handheld electrostatic fieldmeter used for locating and measuring static charges. Its pocket size makes it handy to use and four button operation makes it easy to operate.

The FMX-004 measures static voltages within ±30 kV (30,000V) at a distance of 1 inch. Results are simultaneously displayed numerically and in bar graph format. POWER on/off, ZERO adjustment, MODE and HOLD are all push button operation. The HOLD button allows the display to retain the static charge reading. This is especially useful where display is difficult to see during measurement.

Features and Details

• Digital display with color coded bar graphs
• Lightweight, compact design
• Distance ranging lights
• Audible Alarm Feature
• Battery powered with auto shut-off feature
• Analog Output for feeding signals to chart recorder or other external device
• Range: 0 to ±1.49 kV (low range); ±1.0 kV to ±30 kV (high range)
• Balance: 0 to ±300V
• Distance: 1" ±0.2" (25 mm ±0.5 mm); LED guide for correct distance (between charged object and Fieldmeter)
• Response Time: <1s
• Accuracy: ±10%
• LCD Display: Bar graph: red POSITIVE POLARITY; blue NEGATIVE POLARITY
• LCD Renewal Rate: 5 times/s
• Bar Graph Range: (Auto) ±0.1 kV (Low); ±2 kV (High); ±20V ion balance
• Digital Display: Auto-ranging: 3 digits x.xx = 0 to ±1.49 kV xx.x = ±1.0 kV to ±30.0 kV (Hi); xxx = 0 to 300 (Ion Balance); [HOLD]: Retains display after a measurement; [A.OFF]: Auto power-off function deactivated; [Err]: Error sign if sensor is damaged; Battery condition display (4 stages)
• Alarm: 1 beep POWER ON; depress power button >3s 3 beeps POWER ON W/AUTO OFF disabled; short beeps @ 1s interval 5s before power off AUTO POWER-OFF; continuous beep sound OVER RANGE
• Auto Power-off: Power turns off automatically after 5 min; [A.OFF] is displayed whenever this feature is disabled
• Operating Env.: Temperature 50-100°F (10- 40°C); humidity 0-60% RH (non-condensing)
• Power: 9V, 6F22Y manganese battery
• Battery Life: Approximately 30 hours
• Enclosure: Conductive resin (ABS)
• Dimensions: 4.8L x 2.9W x 1.0D in. (123 x 73 x 25 mm)
• Weight: 6 oz (170g)
• Warranty: Two year limited warranty
